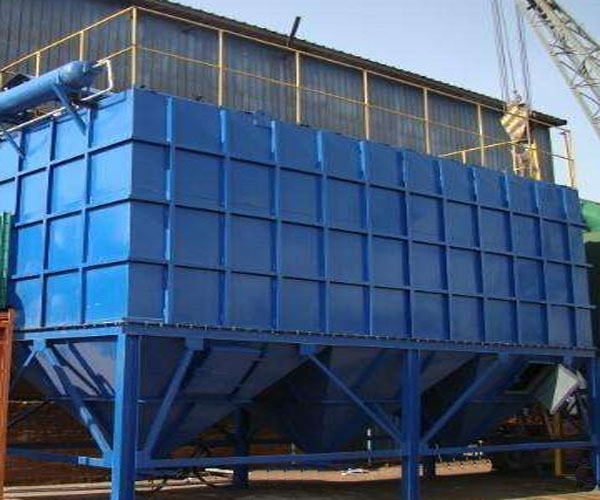

Detailed introduction of bag filter

1、 Technical parameters and performance

1. Dust removal efficiency

Core requirement: Customers are primarily concerned about the removal efficiency of equipment for fine dust, and bag filters have become the preferred choice due to their filtration efficiency of over 99%.

2. Handling air volume and pressure loss

Handling air volume: It is necessary to match the air volume requirements of the customer's production equipment to avoid overload or insufficient efficiency.

Pressure loss: The lower the pressure loss, the less energy consumption, and the lower the long-term operating costs. Customers tend to choose low resistance devices.

3. Filter material

Filter bag material: It needs to adapt to the characteristics of dust.

Polyester fiber: suitable for general working conditions, with good breathability.

Fiberglass: resistant to high temperatures (up to 260 ℃), suitable for high-temperature flue gas treatment.

PTFE coating: improves filtration accuracy and is suitable for ultrafine dust.

Lifespan and replacement cycle: Customers are concerned about the service life and replacement cost of filter bags.

4. Cleaning method

Pulse spraying system: efficient, energy-saving, stable dust cleaning effect, reducing filter bag loss.

Anti blowing dust removal: suitable for small equipment, but with lower efficiency, gradually replaced by pulse type.
